Blinking Smart Stop Increases Motorist Awareness of Motorcycles

Product at a glance

Both the Standard and "Intelligent  versions of the Blinking Smart Stop lets you maximize your  Brake Light Effectiveness.

Standard Version

Intelligent Version

The problem with motorcycle brake lights  is that they are low to the ground in comparison to the third brake light on cars and trucks, so therefore it's not at eyelevel so Blinking Smart Stop alerts people following you.

You know this makes Sense

Installs in no time

Come complete with with installation instructions and with all connectors you will need for your installation

What works best you decide flashing or NON flashing. Flashing lights stand out making you more visible to people following.

Avoid Being A Victim

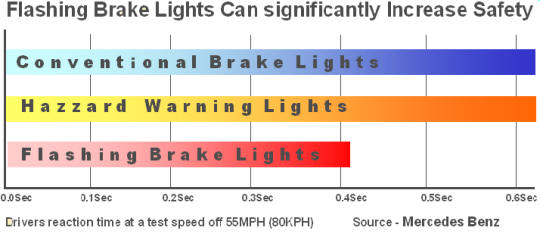

   The data chart



What product do I want ?

  • A typical brake light bulb single or dual filament are rated at 12 Volt 25 Watts this will draw approximately 2.9 amps  Led Lighting will draw very little current (amps) 20 LED's  will draw approximately 120 Milliamps

  • The single standard and Intelligent  module are rated at 6 amps this will allow you to run up to 2 incandescent bulbs, however we recommend you use the plus unit as the module could get overloaded. You can run multiple Led lights with single unit.

  • The Plus units are rated at 30 amps.

  • As you can see from the above statement the plus units will let you run multiple incandescent lights as well as LED lights.

There are two different type of Smart Stop's

  • Both are compact state of the art technologies -fully weatherproofed.

  • A great aid from the elements, when a following driver's vision is impaired by fog, rain, snow, or darkness.

  • These modules are designed to enhance motorcycle brake lights.

  • The Intelligent module will continue to Flash/Pulse all the you have your brakes applied.

All products come complete with all connectors for ease of installation

See installation instructions

 So anything you can do to let drivers know your there is a must.

Blinking Smart Stop Standard Rear End Visual Aid Module: A fully weatherized compact State-of-the-Art solid-state electronic module converts your ordinary brake light into an attention getting visual aid alerting device when you are braking. With the Smart Stop installed, when you apply your brakes, it causes your brake light to automatically emit a visual alerting signal by flashing the light approximately 6 times before entering the steady-state on red light condition.

Plus version works with multiple  brake lights

Size:  1" x 2" x 0.5" (26mm x 51mm x 19mm)  Smart Stop  Standard visual aid module version

RoHS Compiance - Environmental Laws restrict the use of certain hazardous substances. “RoHS: Compliant” addresses the laws transposed from the European Union directive 2002/95/EC known as the RoHS Directive.


Blinking Smart Stop Intelligent Rear End Visual Alert Module:  This fully weatherized compact State-of-the-Art solid-state microprocessor controlled electronic module converts your ordinary brake light into an attention getting visual aid alerting device when you are braking. With the Smart Stop installed, when you apply your brakes, it causes your brake light to automatically emit a visual alerting signal by flashing the light 6 times before entering a steady brake light on for 3 seconds and flash 3 times then a flashing sequence of 3 flashes every 3 seconds with brake light on condition This sequence will continue all the time the brakes are applied  EVEN AT STOP LIGHTS.

Plus version works with multiple  brake lights

Size:  1" x 2" x 0.5" (26mm x 51mm x 19mm)  Smart Stop Intelligent visual aid module version

RoHS Compiance - Environmental Laws restrict the use of certain hazardous substances. “RoHS: Compliant” addresses the laws transposed from the European Union directive 2002/95/EC known as the RoHS Directive.

Look at the facts:

          This is NOT a novelty product it is an added safety device



   Installation instructions - difficulty rating 2 out of 10

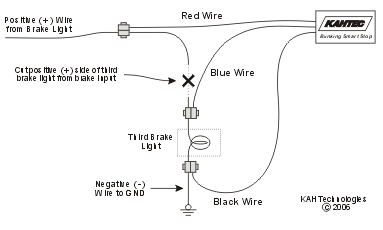

Installation
Locate access to the brake light wires. The easiest access to them is from where you change the existing bulb remove lens and , track back brake wires  to under seat location. Place a “Quick Connect” connector over positive (+) side of brake switch wire going to the brake light and insert the Red wire. Using the pliers, squeeze the metal splice to secure the wires and then snap the cover closed.
1.       Place a “Quick Connect” connector over the same positive (+) side brake wire going to the brake light wire but between where you attached the Red wire and light
2.       Connect blue wire to bulb side or tail light Brake wire Insert the Blue wire and squeeze and snap as before.
3.       Place a “Quick Connect” connector over the negative (-) side wire (any chassis ground) and insert the black wire. Squeeze and snap as before.
4.       Cut brake contact or brake switch wire positive (+) side wire between where you attached the Red and Blue wires from the Blinking Smart Stop Module
Fit the Blinking Smart Stop Module somewhere away from areas of high temperature, moisture and water leakage...
Please note as the wiring in most Motor Cycles vary because of there age please ensure the “Quick Connect”   have a good connection i.e. ensure that the  “Quick Connect”  has cut through the wire insulation.

For the Plus module just repeat the connection on the second red and blue wires.

You can refer to your owner's manual to determine the color of brake switch wire.
